OPTO Mini Air-blown Cable
Description

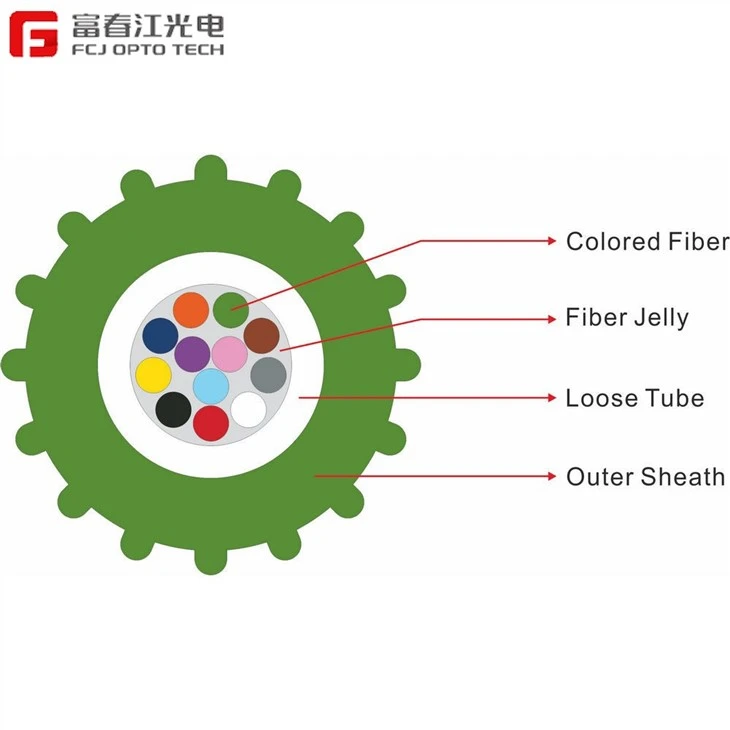

Mini center tube type air-blown fiber optic cable is coloring 2-24 core fiber placed in the bundle tube, the outer skin extruded a layer of high-density polyethylene outer sheath.
Characteristics
● Special composite material loose casing to reduce low temperature casing retraction.
● Precise control of fiber residual length, stable performance of optical cable.
●Unique process control to eliminate sheath wrinkling in air blowing.
●High density polyethylene outer sheath to improve air blowing distance.
Standards
IEC 60794-5、IEC 60794-1-2 or D/T 1460-2006
Optical Characteristics
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth （Class A） |
@850 |
|
|
≥500MHZ·km |
≥200MHZ·km |
|
@1300 |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
≤1480nm |
|
|
Technical Parameters
|
Mini Cable Type |
GCYFXY－xxF（MTE +Outer diameter） |
||||
|
MTE1.8 |
MTE2.0 |
MTE2.3 |
MTE2.5 |
MTE2.8 |
|
|
Fiber Count |
2～4 |
2～4 |
6～12 |
2～12 |
14～24 |
|
HDPE Outer Sheath Thickness |
Nominal：0.20mm，Mini: 0.15mm |
||||
|
Nominal Outer Diameter |
1.8mm |
2.0mm |
2.3mm |
2.5mm |
2.8mm |
|
Approximate Weight |
2.6 kg/km |
4.0 kg/km |
5.0 kg/km |
6.0 kg/km |
7.0kg/km |
|
Attenuation (single-mode fiber) |
1310nm/1550nm≤0.35/0.22dB/km |
||||
|
Max. Pulling Force |
40N |
40N |
50N |
60N |
60N |
|
Max. Squeeze Force |
600N/100mm |
||||
|
Mini Permissible Static / Dynamic Bending Radius |
10x/20x O.D. of fiber optic cable |
||||
|
Temperature Range |
Storage -30～＋60℃； Installation -10～＋40℃； Operation -20～＋50℃ |
||||
|
Fiber optic cable life (valuation) |
25 YEARS |
||||
Mechanical performance
|
Items |
Test Reference Standards |
Test Results |
Remarks |
||
|
Tension |
IEC 60794-1-2-E1 |
Fiber Strain（%） |
Accessory Decay（dB） |
Short-term test tension is the maximum tension. Long-term test tension is 1/3 of the maximum tension |
|
|
|
Short-term ≤0.3 |
Short-term：≤0.1， |
|||
|
Flattening force |
IEC 60794-1-2-E3 |
Short-term crushing force: additional attenuation ≤ 0.05. Long-term crushing force: no significant. After stress removal, no visible residual additional attenuation of the fiber, the No visible cracking on the sheath surface |
Short-term test pressure:600N Long-term test pressure: 200N |
||
|
Repeated bending Test |
IEC 60794-1-2-E6 |
After testing: no visible residual accessory attenuation of the fiber. No visually visible cracking of the sheath |
Bending radius = 20 times the diameter of the micro cable |
||
|
Load = 15N |
|||||
|
Bending times: 25 |
|||||
|
Torsion test |
IEC 60794-1-2-E7 |
After the test: no fiber breakage and no visually visible cracking of the sheath. After stress removal, no obvious residual additional attenuation |
Turning angle: ±180º |
||
|
Load = 15N |
|||||
|
Number of torsions: 5 |
|||||
|
Winding test |
IEC 60794-1-2-E11A |
After the test: no fiber breakage and no visually visible cracking of the sheath |
Mandrel diameter = 20 times the diameter of the micro cable |
||
|
Number of tightly wound turns = 10 |
|||||
|
Number of cycles = 5 |
|||||
|
All the above results are tested at 1550nm wavelength |
|||||
Blowing Performance
|
Test Equipment |
Typical air delivery lengths and pipe types suitable for air delivery |
||
|
Polimente: PRM-196 , PR140 etc. Air pressure: 13bar |
Fiber Count |
Microtube type |
Microtube type |
|
2～12 芯 |
800m |
1500m |
|
|
14～24 芯 |
500m |
1500m |
|
Environmental Characteristics
|
Items |
Test Method |
Indicators to be achieved by the test |
|
Temperature Performance |
IEC 60794-1-2-F1 |
Additional attenuation of fiber (1550nm) |
|
≤0.1 dB/km |
||
|
Water penetration performance |
IEC 60794-1-2-F5B |
1m water height, 3m cable, test time 24 hours No water seepage from the other end of the micro cable |
|
Drip performance |
IEC 60794-1-2-E14 |
Microcables are maintained at an ambient temperature of 70°C for 24 hours No filler compound drops out of microcables |
