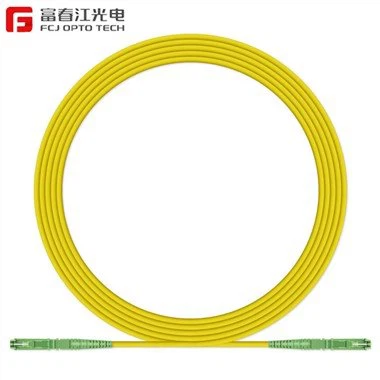

LC Jumper
SC/LC/FC/St/Mu/MTRJ/E2000 fiber optic patch cordis used for linking the equipment and components in the fiber optic network. They are with various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types. There are PC, UPC, APC type fiber patch cord. They are different because of the polish of fiber connector.
Application
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test & Measurement
3. Military industry
4. Medical
Features
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Excellent mechanical endurance
4. Good in repeatability
5. Good in exchange
6. Green Production, CE, RoHS Standard
Product Parameters
Mode | Single mode | Multimode | |
Polish | UPC | APC | PC |
Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
Return Loss | ≥50dB | ≥60dB | ≥30dB |
Test Wavelength | 1310/1550nm | 850/1310nm | |
Durability (500 Matings) | ≤0.2dB | ||
Operating Temperature | -40ºC~+60ºC | ||
Storage Temperature | -45ºC~+85ºC | ||
Fire Resistant | IEC 60794-2-30 | ||
Standards-Compliant | ROHS, IEC and GR-326 | ||
Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A, G657A2 | (4)9/125-G657B3 | |
Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 | |
Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
Cord type | Simplex, Duplex | |||||
Cable diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
Cable jacket | PVC, OFNR, LSZH, OFNP | |||||
Length (M) | 0.5m, 1m, 2m, 5m, 10m, 25m, 50m, 100m…Customized | |||||
