GJYXCH FTTH Fiber Optic Drop Cable
Product Description:
GJYXCH 1~8cores FTTH Fiber Optic Drop Cable with Phosphating steel wire messenger ,G652D/G657A1/G657A2 fiber LSZH outer sheath

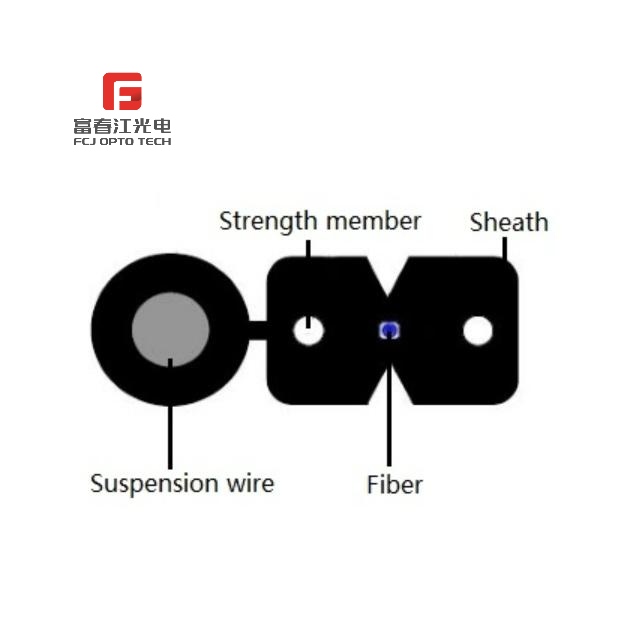

GJYX(F)CH is the FTTH drop cable with self-supporting. The optical fiber unit is positioned in the centre. Two steel wires (or FRP, KFRP ) are placed at the two sides ,then
an additional steel wire is attached to the outside. Finally the cable is completed with a black or white color PVC or LSZH (low smoke, no halogen, flame retardant) sheath.
Features and application:
* Simple structure, light weight and strong practicability.
* Unique groove design, easy to peel off and connect, simplify installation and maintenance;
* A single steel wire with additional reinforcement elements makes the cable have good tensile properties.
*Outdoor aerial
Fiber parameters
Technical parameters
Main mechanical and environmental properties
Standard wood drum (Pallets) or carton box;
Standard Length :1000m/2000m or customized
Fiber parameters
|
|
G.652.D |
G.657A2 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
- |
- |
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
- |
- |
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
- |
- |
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
- |
- |
|
|
Bandwidth |
@850nm |
- |
- |
≥500MHz·km |
≥200MHz·km |
|
@1300nm |
- |
- |
≥1000MHz·km |
≥600MHz·km |
|
|
Wavelength |
|
≤1260nm |
≤1260nm |
- |
- |
|
Polarization mode dispersion |
Single fiber |
≤0.20ps/√km |
≤0.20ps/√km |
- |
- |
|
Link value (M=20,Q=0.01%) |
≤0.10ps/√km |
≤0.10ps/√km |
- |
- |
|
Technical parameters
|
|
|
|
|
||
|
|
Fiber cores |
1 |
2 |
4 |
|
|
Strength member |
Material |
KFRP/Steel wire |
|
||
|
Self-supporting |
Material |
Steel wire |
|
||
|
Outer jacket |
Thickness mm |
≥0.3 |
|
||
|
Outer dia. |
mm |
(2.0*5.0)±0.1 |
(2.0*5.0)±0.1 |
(2.0*6.0)±0.1 |
|
|
Temperature |
ºC |
-40~+60 |
|
||
|
Tensile |
Short/Long N |
600/300 |
|
||
|
Flatten |
Short/Long N |
2200/1000 |
|
||
|
* Note: Or customized according to the customer's requirements |
|
||||
Main mechanical and environmental properties
|
Test items |
Test standard |
Specified value |
Requirement |
|
Tensile |
IEC 60794-1-2-E1 |
According to the technical Parameter |
Residual additional attenuation≤0.03dB |
|
Flatten |
IEC 60794-1-2-E3 |
According to the technical Parameter |
Additional attenuation under short-term flat force≤0.4dB |
|
Crush |
IEC 60794-1-2-E4 |
Impact 1N,Height 1m,at least 3 locations |
Residual additional attenuation≤0.4dB |
|
Repeated Bending |
IEC 60794-1-2-E6 |
20N 300 times |
Residual additional attenuation≤0.4dB |
|
Temperature |
IEC 60794-1-2-F1 |
-40ºC ~+60ºC |
Additional attenuation≤0.02dB |
|
Combustion |
IEC 60332-1-2 |
Flammability |
Should be able to pass through a single vertical combustion |
|
Smoke density |
No less than 50% |
||
|
Corrosive |
The gas PH ≤ 4.3 during burning, the conductivity should ≤ 10 μs / mm |
||
|
* All optical fiber attenuation changes are monitored at a wavelength of 1550 nm. |
|||
Packing Info:
Standard wood drum (Pallets) or carton box;
Standard Length :1000m/2000m or customized
Ordering Info:
|
1 Fiber Unit: |
No-fiber / J-compact fibre/ D-Band fiber |
|
|
2 Fiber cores: |
1~8 |
|
|
3Type of the fiber: |
A1a(50/125) / A1b(62.5/125)/B6a2(G657A2)/B1.3(G652D) |
|
