GJSFJV Indoor Fiber Optic Cable
video

GJSFJV Indoor Fiber Optic Cable

FCJ GJSFJV Indoor Single Armored Fiber Optic Cable
Send Inquiry
Product Introduction
1 1Professional Team
1) Engineer has more than 20+years working experience in the communications industry.
2)Sales manager has more than 15+years working experience in the communications industry.
3)Service support department has more than 5+years working experience in the communications industry.
Welcome friends from all over the world to visit our factory and look forward to doing business with more customers.
Please remember FCJ brand, will be win-win,Please follow us or send inquiry to us
Our advantage:
1)FCJ owns two listed companies, Hangzhou Cable Co., Ltd. (stock code 603678) and Zhejiang Fuchunjiang Environmental Thermoelectric Co., Ltd. (stock code 002479).
2) FCJ is one of the top 500 private enterprises in China. The top 10 in China, the top 5 in Zhejiang Province and the top 3 in Hangzhou in the communications industry.
3) Independent production with complete intellectual property of preform and optic fiber.
4) One-stop R&D and production of perform, optic fiber, cable and components.
5) 30-year quality assurance.
6) National Telecom Operator Designated Supplier.
Supplies Fortune 500 companies.
If you are an engineer, distributor, operator, or procurement agent,
choosing FCJ means choosing a 30 year quality assurance.
Sincerely welcome to visit our factory,contact supplier now.
Products Description





1620745194761275

20210304155929236

1620744579195880

202103041555309966

1620743061250229

202103041600199274



Description

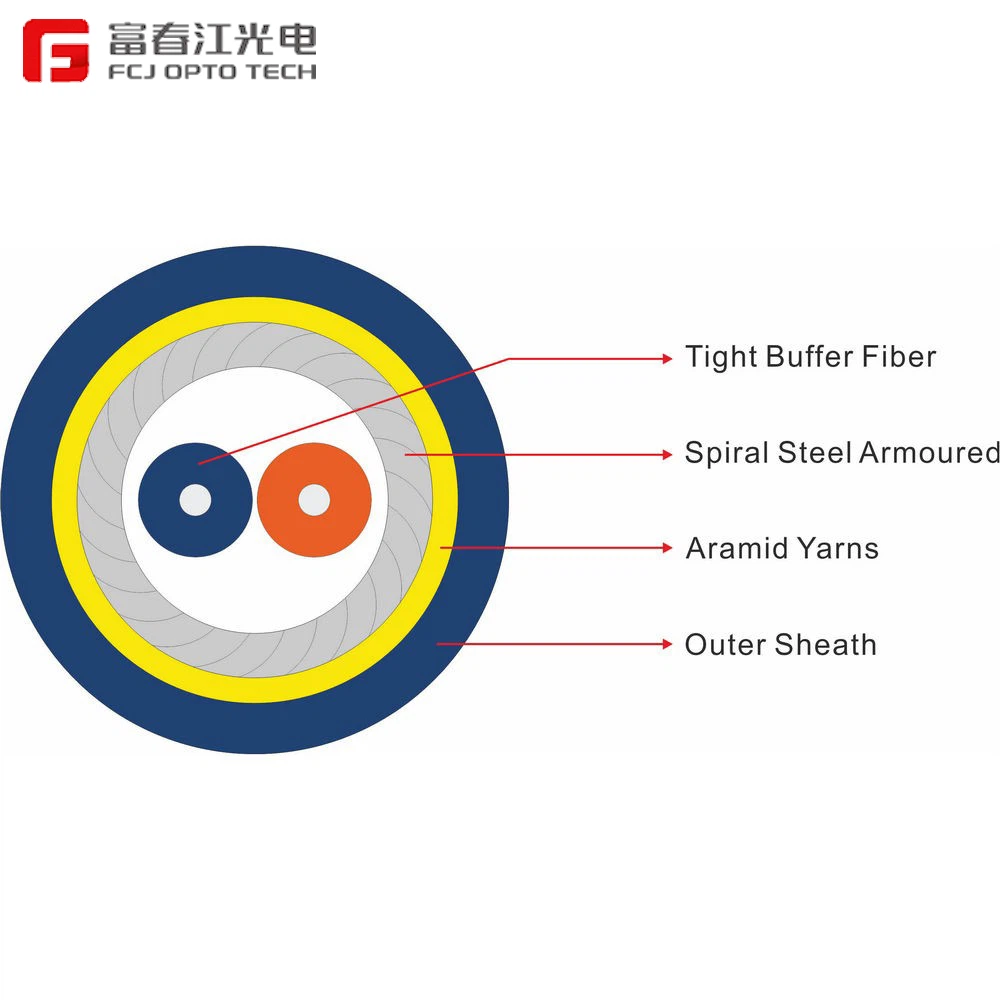

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

Characteristics

·2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·Light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.

Standards

·GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

Application

·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
·Small installation space cabling

Optical Characteristics



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm



≤3.0dB/km

≤3.0dB/km

@1300nm



≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km



@1550nm

≤0.22dB/km

≤0.23dB/km



Bandwidth
(Class A)

@850



≥500MHZ·km

≥500MHZ·km

@1300



≥1000MHZ·km

≥600MHZ·km

Numerical Aperture



0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength



≤1260nm

≤1480nm



Technical Parameters

Cable Type

Fiber Count

Tight

Diameter
mm

Cable Diameter
mm

Cable Weight

Kg/km

Tensile Strength

Long/Short Term
N

Crush Resistance

Long/Short

Term
N/100m

Bending Radius Static/Dynamic
mm

GJSFJV

2

0.6

3.2

15

300/750

200/1000

20D/10D

GJSFJV

2

0.9

4.0

28

300/750

200/1000

20D/10D

Storage/Operating Temperature : -20℃ to + 60℃
