GJFJU

GJFJU-1F

(Outdoor single core tight-buffered aerial fiber optic cable TPU jacketed)

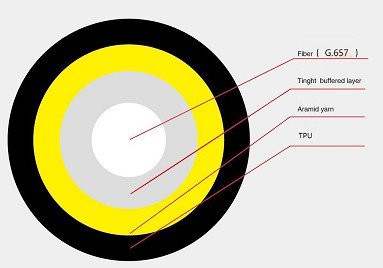

GJFJU-1F Cross Section

Description

GJFJU-1F Outdoor single core tight-buffered aerial fiber optic cable is a single core optical fiber that tight buffered and surrounded by aramid yarn strength member (or glass yarn) and jacketed with TPU, cable dia. 3.0~4.8mm or customized. Cable span around 20~30KM.

This specification covers the design requirements and performance standard for the supply of optic fiber cable in the industry. It also includes FCJ premium designed cable with optical, mechanical and geometrical characteristics.

Quality

FCJ fiber optic cable has excellent optic transmission and physical performance, to meet customer's requirements.

Reliability

Initial and periodic qualification tests for raw material and cable product are performed to assure the cable's performance and durability in the field environment.

Reference

Working Condition

Storage temperature: -40℃～+70℃

Operation temperature: -40℃～+70℃

Installation temperature: 0℃～+60℃

Minimum Allowable Bending Radius

Static: 10D

Dynamic: 20D

D is the out diameter of the cable

Life Time

Optic fiber cables supplied in compliance with the specifications can be capable of withstanding the typical service condition for a period of twenty-five (25) years without detriment to the transmission or operation and maintenance characteristics of the cable.

Optic Fiber In Cable (ITU-T G.657)

Optic properties of the SM fiber are achieved through a germanium doped silica based core with a pure silica cladding which meets ITU-T G.657, UV curable acrylate protective coating is applied over the glass cladding to provide the necessary maximum fiber lifetime.

Geometrical, optic and mechanical characteristics of fiber in cable as the following table:

Optic Cable

General Design

The color of the optic fiber coating should be one of the following chromatograms:

The Color also be natural;

The optic fiber adopts G.657 series coated optic fiber, and a tight jacket layer composed of a suitable thermoplastic material is added to the outside. It has a mechanical buffer protection effect on the coated optic fiber and is easy to strip from the light;

The optic cable adopts aramid tow or the glass yarn is used as a strengthening member, and they are evenly twisted in layers or placed longitudinally outside the optic fiber tight jacket;

The optic cable is extruded with a layer of circular polyurethane (TPU) sheath outside the strengthening member.

Dimensions and Descriptions of Cable Constructions

Mechanical & Environmental Performance of Cable

Main Mechanical & Environmental Performance Test

Remark: "No attenuation changes" is considered as the attenuation changes ≤ 0.05 dB.

Packaging and Drum

Cable Sheath Marking:

Unless otherwise specified, the cable sheath marking shall be as follows:

Color: White

Contents: FCJ OPTO TECH., the year of manufacture, the type of cable, cable number, length marking

Interval: 1±0.2% m (or customized)

Cable Length

Reel length: 2 km/drum.

Cable Drum

The cables are packed in fumigated wooden drums.

Cable Packing

Both cable ends are protected against water penetration and firmly secured to the drum, so the cable cannot move and the turns cannot slide when it is moved, handled or laid. The inner end has around 3 meters of accessible length to perform reception tests.

Other packing method is also available according customer's requirement.
