GYDTA Armored Optic Cable

Professional Team

1) Engineer has more than 20+years working experience in the communications industry.

2)Sales manager has more than 15+years working experience in the communications industry.

3)Service support department has more than 5+years working experience in the communications industry.

Welcome friends from all over the world to visit our factory and look forward to doing business with more customers.

Please remember FCJ brand, will be win-win,Please follow us or send inquiry to us

Our advantage：
1)FCJ owns two listed companies, Hangzhou Cable Co., Ltd. (stock code 603678) and Zhejiang Fuchunjiang Environmental Thermoelectric Co., Ltd. (stock code 002479).
2) FCJ is one of the top 500 private enterprises in China. The top 10 in China, the top 5 in Zhejiang Province and the top 3 in Hangzhou in the communications industry.
3) Independent production with complete intellectual property of preform and optic fiber.
4) One-stop R&D and production of perform, optic fiber, cable and components.
5) 30-year quality assurance.
6) National Telecom Operator Designated Supplier.





Description

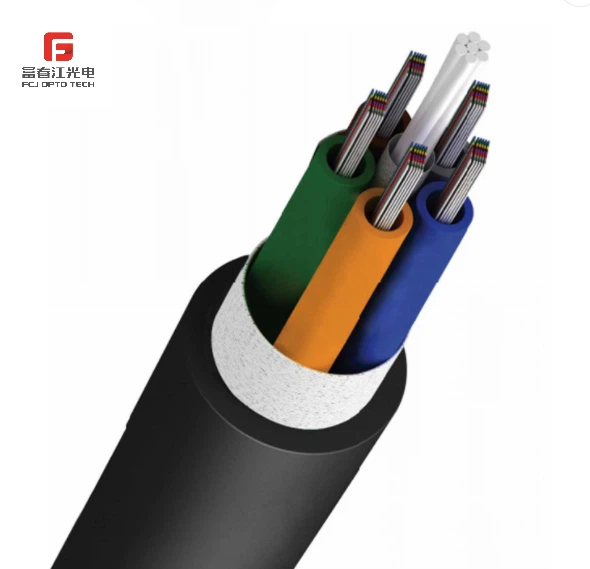

GYDTA fiber optic cable, the fibers, 200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. The PSP is longitudinally applied over the cable core, a thin PE inner sheath is applied, then the cable is completed with a PE outer sheath.

Characteristics
·Good mechanical and temperature performance
·High strength loose tube has good performance of water proof and high strength
·Special tube filling compound ensure a critical protection of fiber
·Good crush resistance and flexibility
·The following measures are taken to ensure the cable watertight:
·Steel wire used as the central strength member
·Loose tube filling compound
·100% cable core filling
·PSP enhancing moisture-proof and anti-rodent
·Good water resistance material prevent longitudinal seepage
·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.

Standards
·GYDTA cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.

Optical Characteristics

Technical Parameters

Storage/Operating Temperature : -40ºC to + 70ºC
