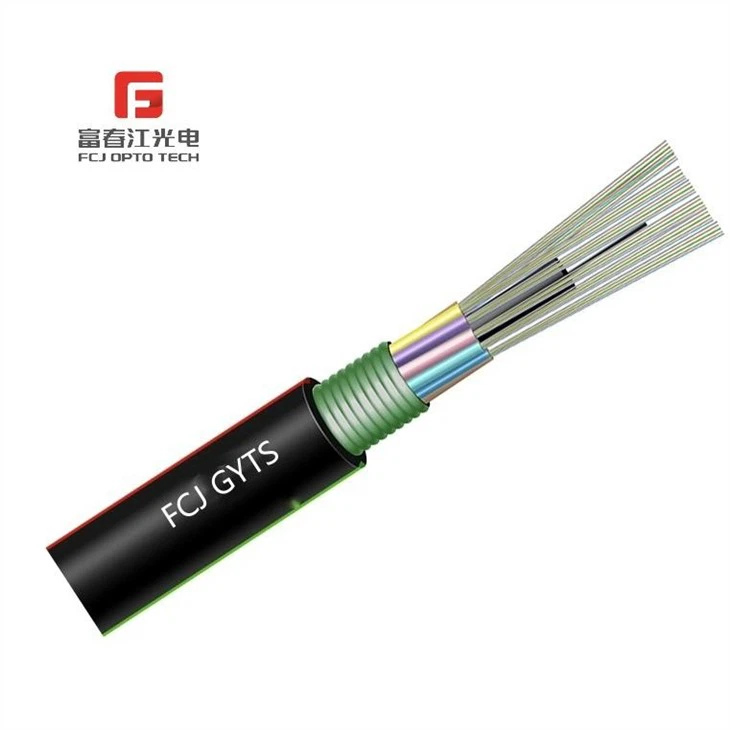

Loose Tube Fiber Optical GYTS Cable
Product Description
Direct Buried Fiber Optic GYTA53 Cable

Summary:
2~144 fibers central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer steel tape, PE outer sheath. G652D SM fiber, detailed specification on your request.
Characteristic:
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
The jacket also can be made of HFFR, which cable model is GYTZS
Operating Temperature: -40 ~ +60 C
| Designation | Max. number | Steel wire/ stand | Stranded | Nominal cable | Nominal cable |
| Of fibers per tube | Diameter (mm) | units | diameter (mm) | weight (kg/km) | |
| GYTS-2-30 | 6 | 1.6 | 5 | 10.6 | 108 |
| GYTS-32-36 | 6 | 2.3 | 6 | 11.3 | 135 |
| GYTS-38-60 | 12 | 2.0 | 5 | 12.0 | 140 |
| GYTS-62-72 | 12 | 2.3 | 6 | 12.8 | 165 |
| GYTS-74-120 | 12 | 2.3 | 10 | 16.5 | 246 |
| GYTS-122-144 | 12 | 2.3 | 12 | 18.5 | 300 |
Mechanical & Environmental Characteristics
| Item | Characteristics | ||
| GYTS-2-60 | GYTS-62-144 | ||
| Tensile Strength | 1500N | 3000N | |
| Crush Resistance | 1000N/100mm | ||
| During Installation | 20 Times Cable Diameter | ||
| After Installation | 10 Times Cable Diameter | ||
| Temperature Range | |||
| Storage | -50°Cto+70°C | ||
| Operating | -40°Cto +60°C | ||
