Stainless Steel Tube Optical Cable
F-SST self-supporting figure 8 cable contains mini F-SST as optical fiber unit and single steel wire or wire rope strengthening members. The maximun number is 24. It is jacketed with LSZH, PE or PA. F-SST self-supporting figure 8 cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure and harsh environment, and is suitable for overhead laying. It is perfect solution to replace the traditional figure 8 cables.

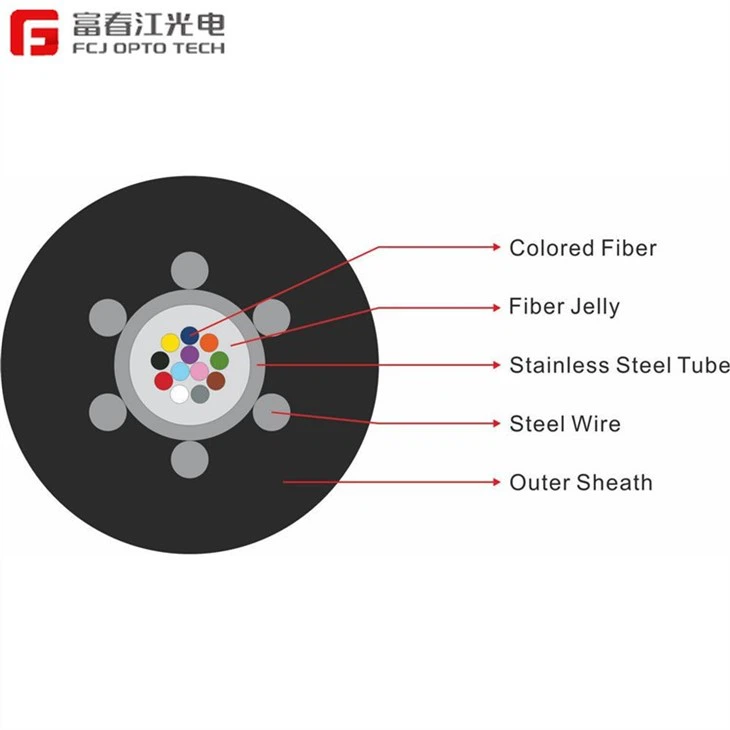

Construction
Single mode, multimode fiber optical cable, maximum of 24 cores
F-SST
LSZH, PE, or PA jacketing, anti-ultraviolet radiation
Steel wire or wire rope strengthening
Characteristics
Small size and low weight
Good mechanical performance, withstanding the tensile force and force and super pressure
Waterproof, moisture-proof, anti-rodents,no rusty
Resistance to acid, alkali, salt corrsion
Outstanding high and low temperature performances
Application
Indoor cabling
Pipe laying
Ground slot laying
Temperature sensing cable
Fire monitoring
Temperature Range
Operating temperature: -60~+80℃
Storage temperature: -60~+80℃
Min. Bending Radius
Static=10D
Dynamic=20D
Replacement
GYXTC8S, GYTC8S
Fiber counts | size | Cable weight | Allowable tensile force (N) | Allowing crush force (N) | ||
d | d1 | t | kg / km | Long-term / short-term | Long-term / short-term | |
2 | 1.20 | 1.20 | 1.00 | 31.88 | 1000/2000 | 2500/5000 |
4 | 1.35 | 1.35 | 1.00 | 36.62 | 1250/2500 | 2000/4000 |
6 | 1.50 | 1.50 | 1.00 | 44.42 | 1500/3000 | 2000/4000 |
8 | 1.75 | 1.75 | 1.00 | 53.37 | 1750/3500 | 2000/4000 |
12 | 2.00 | 2.00 | 1.00 | 57.43 | 1750/3500 | 1000/2000 |
