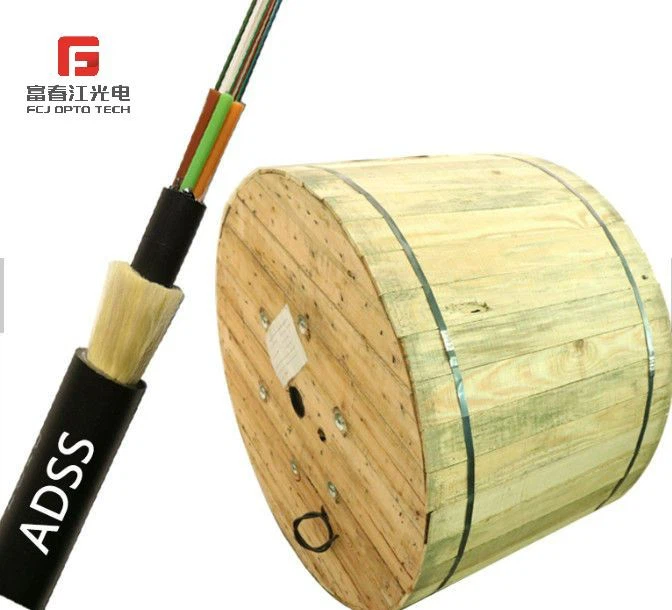

FTTH ADSS Network Cable Outdoor G657A Communication Cable 48/96c Fiber Optic Cable

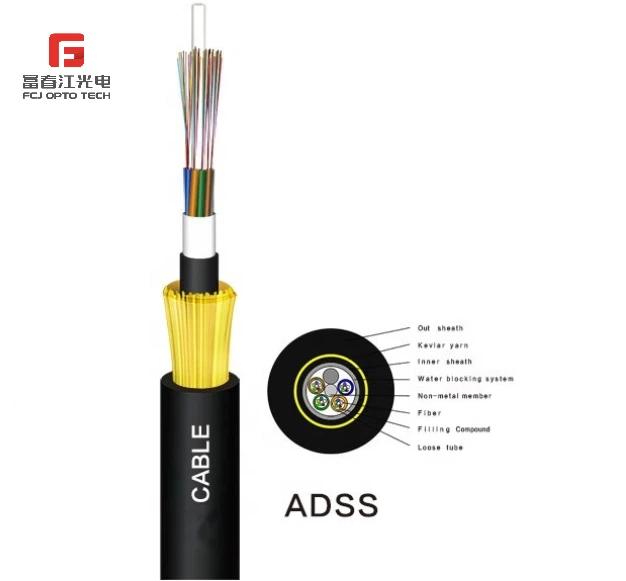

1. Cable cross-section



2. Cable Specification
2.1 Introduction
Loose tube construction, tubes jelly filled, elements (tubes and filler rods) laid up around non-metallic central strength member, polyester yarns used to bind the cable core, water blocking tape wrapped the cable core, aramid yarns reinforced and PE outer sheath.
2.2 Fiber color code
Fiber color in each tube starts from No. 1 Blue.

1	2	3	4	5	6	7	8	9	10	11	12
Blue	Orange	Green	Brown	Gray	White	Red	Black	Yellow	Purple	Pink	Aqua

2.3 Color codes for loose tube & filler rod
Tube color starts from No. 1 Blue. If there are fillers, the color is natural.

1	2	3	4	5	6	7	8	9	10	11	12
Blue	Orange	Green	Brown	Gray	White	Red	Black	Yellow	Purple	Pink	Aqua

2.4 Cable structure and parameter

SN	Item	Unit	Value
1	No. of fibers	count	6/8/12/24	36/48/72	96	144
2	No. of fibers per tube	count	4	12	12	12
3	No. of elements	count	6	6	8	12
4	Thickness of outer sheath	mm	1.7	1.7	1.7	1.7
5	Cable diameter(±5%)	mm	10.9	11.6	13.2	16.3
6	Cable weight(approx.)	kg/km	83	96	133	202
7	MAT	N	3000
8	Short term crush	N/100mm	1000
9	Span	m	120
10	Wind speed	Km/h	≤35
11	Ice thickness	mm	0

Note: Mechanical sizes are nominal values.
3. Characteristic of Optical Cable
3.1 Min. bending radius for installation
Static:  10 x cable diameter
Dynamic:  20 x cable diameter
3.2 Application temperature range
Operation:  -40ºC ~ +60ºC
Installation:  -10ºC ~ +60ºC
Storage/transportation:  -40ºC ~ +60ºC

4. Characteristic of Optical Fiber

G652D fiber information
Mode field diameter (1310nm):               9.2mm±0.4mm
Mode field diameter (1550nm):                  10.4mm±0.8mm
Cut off wavelength of cabled fiber (l_cc):           £1260nm
Attenuation at 1310nm:               £0.36dB/km
Attenuation at 1550nm:               £0.22dB/km
