Description

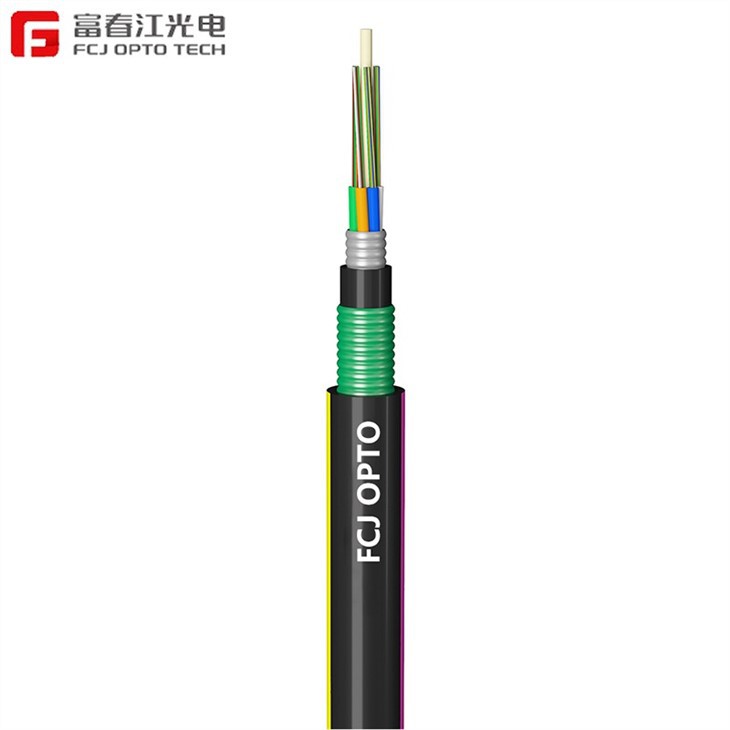

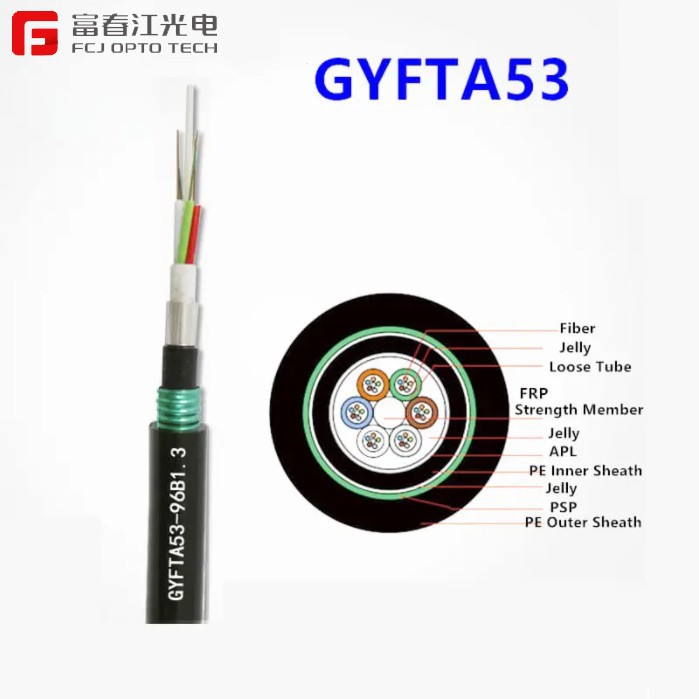

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
Standards
GYFTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23 dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
|
|
Why choose us?
- Our team of experts is dedicated to providing our customers with customized solutions for their Outdoor Optical Cable needs.
- Our company has successively passed ISO9001:2015 quality management system certification, ISO14001:2015 environmental management system certification, and CE and other international standard certifications. We have a new R&D base, intelligent factories, measurement laboratories, professional routine laboratories, and other industry-leading special equipment, and are committed to R&D and manufacturing in this field.
- We have the expertise and experience to provide our customers with the best Outdoor Optical Cable products and solutions tailored to their needs.
- The company has complete testing equipment, perfect testing methods, and professional technical personnel, which have laid a solid foundation for the quality of Gyfta53 Armored.
- Our factory is proud to be an industry leader in the production of high-quality Outdoor Optical Cable products.
- We have been abiding by the business philosophy of 'integrity, pragmatism, stability, and efficiency', constantly forging ahead, and contributing to the development of the Gyfta53 Armored industry.
- We ensure our Outdoor Optical Cable products meet industry standards and regulations, providing our customers with peace of mind.
- For a long time, we have attached great importance to the core role of intellectual property rights on enterprise technological innovation and continuously improved our intellectual property management system.
- Our Outdoor Optical Cable products are manufactured using the latest technology and the highest quality materials available.
- We adhere to the principle of quality leading, technological innovation and service-oriented, and serve customers from all walks of life with high quality and efficient Gyfta53 Armored.
