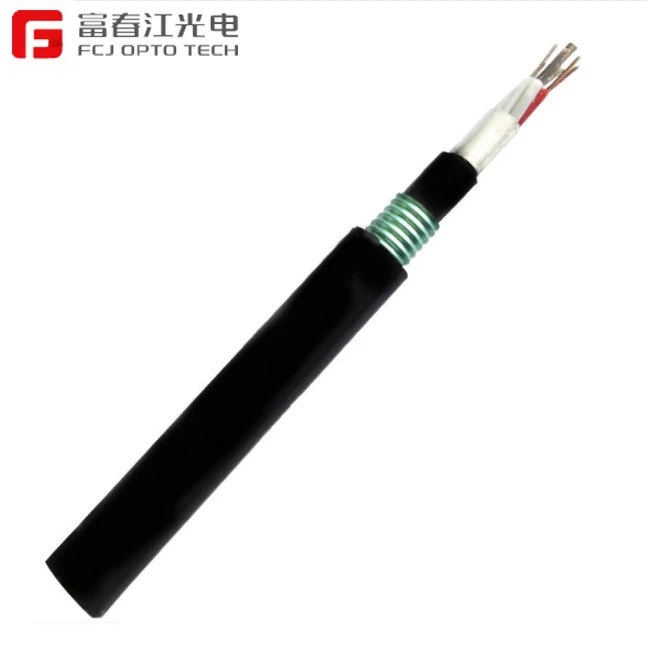

GYTA53 Armored

Cable Structure: Waterproof Single-Armored
Fiber Number: 2-144cores
Fiber Type: G652
Out Sheath Material: PE/AT
Package: 2km/wooden reel

Send Inquiry

Product Introduction

Cable Structure: Waterproof Single-Armored

Fiber Number: 2-144cores

Fiber Type: G652

Out Sheath Material: PE/AT

Package: 2km/wooden reel

Good mechanical and temperature performance

High strength loose tube that is hydris resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

1. Steel wire used as the central strength member

2. Loose tube filling compound

3. 100% cable core filling

4. APL moisture barrier

5. PSP enhancing moistureproof

6. Water-blocking material

IEEE P 1222 technical standard and conforms to the IEC 60794-1 standard.

GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYTA53-2~6	2~6	1	5	13.8	188	1000/3000	1000/3000	10D/20D
GYTA53-8~12	8~12	2	4	13.8	188	1000/3000	1000/3000	10D/20D
GYTA53-14~18	14~18	3	3	13.8	188	1000/3000	1000/3000	10D/20D
GYTA53-20~24	20~24	4	2	13.8	188	1000/3000	1000/3000	10D/20D
GYTA53-26~30	26~30	5	1	13.8	188	1000/3000	1000/3000	10D/20D
GYTA53-32~36	32~36	6	0	13.8	188	1000/3000	1000/3000	10D/20D
GYTA53-38~48	38~48	4	1	14.6	206	1000/3000	1000/3000	10D/20D
GYTA53-50~60	50~60	5	0	14.6	206	1000/3000	1000/3000	10D/20D
GYTA53-62~72	62~72	6	0	15.0	215	1000/3000	1000/3000	10D/20D
GYTA53-74~84	74~84	7	1	16.4	254	1000/3000	1000/3000	10D/20D
GYTA53-86~96	86~96	8	0	16.4	254	1000/3000	1000/3000	10D/20D
GYTA53-98~108	98~108	9	1	17.8	290	1000/3000	1000/3000	10D/20D
GYTA53-110~120	110~120	10	0	17.8	290	1000/3000	1000/3000	10D/20D
GYTA53-122~132	122~132	11	1	19.5	340	1000/3000	1000/3000	10D/20D
GYTA53-134~144	134~144	12	0	19.5	340	1000/3000	1000/3000	10D/20D
GYTA53-146~216	146~216			19.5	345	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature: -40℃ to + 70℃
