GYTY53 Armored Outdoor Optic Cable

The GYTY53 G652D Armored Optical Fiber Cable With Steel Tape
Send Inquiry
Product Introduction
1 1Professional Team
1) Engineer has more than 20+years working experience in the communications industry.
2)Sales manager has more than 15+years working experience in the communications industry.
3)Service support department has more than 5+years working experience in the communications industry.
Welcome friends from all over the world to visit our factory and look forward to doing business with more customers.
Please remember FCJ brand, will be win-win,Please follow us or send inquiry to us
Our advantage:
1)FCJ owns two listed companies, Hangzhou Cable Co., Ltd. (stock code 603678) and Zhejiang Fuchunjiang Environmental Thermoelectric Co., Ltd. (stock code 002479).
2) FCJ is one of the top 500 private enterprises in China. The top 10 in China, the top 5 in Zhejiang Province and the top 3 in Hangzhou in the communications industry.
3) Independent production with complete intellectual property of preform and optic fiber.
4) One-stop R&D and production of perform, optic fiber, cable and components.
5) 30-year quality assurance.
6) National Telecom Operator Designated Supplier.
Supplies Fortune 500 companies.
If you are an engineer, distributor, operator, or procurement agent,
choosing FCJ means choosing a 30 year quality assurance.
Sincerely welcome to visit our factory,contact supplier now.
Products Description

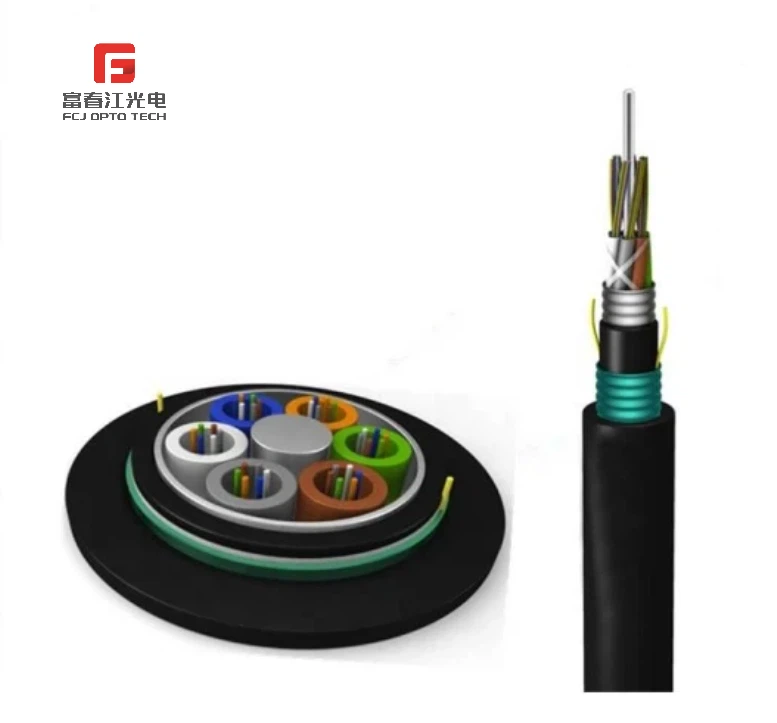

e



Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Characteristics

Good mechanical and temperature performance

High strength looes tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

PSP enhancing moisture-proof

Water-blocking material



Standards

GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.



Optical Characteristics





G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth

(Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength

≤1260nm

≤1480nm







Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius



Static/Dynamic

mm

GYTY53-2~6

2~6

1

5

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-8~12

8~12

2

4

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-14~18

14~18

3

3

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-20~24

20~24

4

2

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-26~30

26~30

5

1

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-32~36

32~36

6

0

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-38~48

38~48

4

1

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-50~60

50~60

5

0

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-62~72

62~72

6

0

15.0

215

1000/3000

1000/3000

10D/20D

GYTY53-74~84

74~84

7

1

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-86~96

86~96

8

0

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-98~108

98~108

9

1

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-110~120

110~120

10

0

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-122~132

122~132

11

1

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-134~144

134~144

12

0

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-146~216

146~216





19.5

345

1000/3000

1000/3000

10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
