GYFTC8S

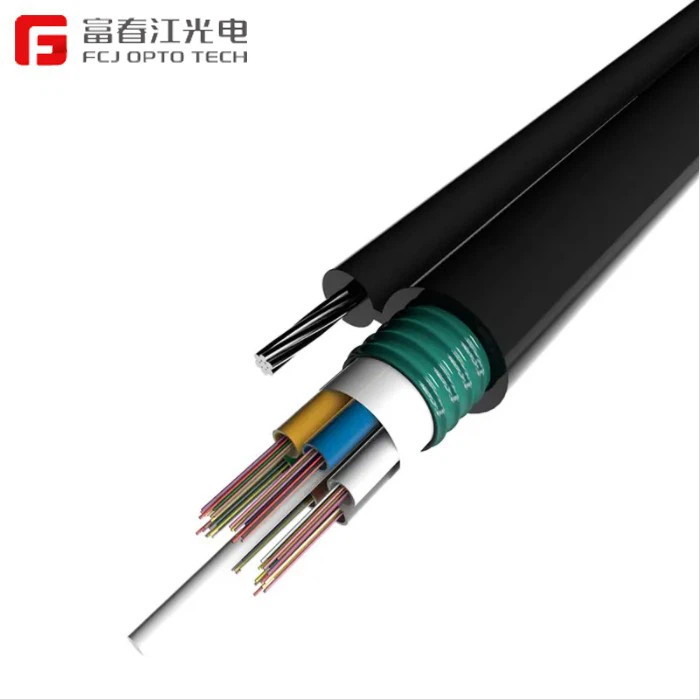

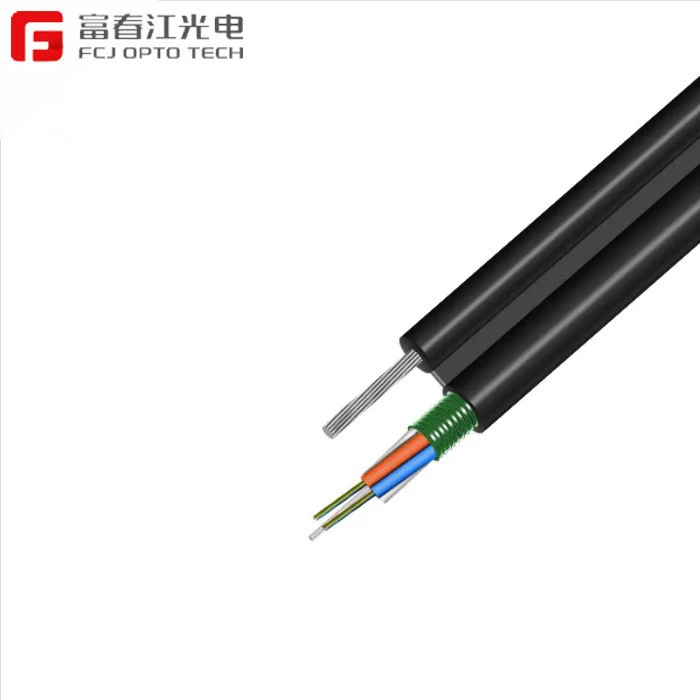

GYFTC8S optical fiber cable: 2~288 fibers, central strength member (FRP), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer coated steel tape, PE outer sheath, fig 8 type, the suspension line (1.2x3=3.6mm), 7 steel wires stranded together. G652D SM fiber, detailed specification on your request.
Features
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, self-supporting
Operating Temperature: -40 ~ +60 C
Standards
GYFTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight kg/km | Tensile Strength N | Crush Resistance N/100mm | Bending Radius mm |
GYFTC8S-2~12 | 2~12 | 1 | 4 | 9.5*16.5 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYFTC8A-14~24 | 14~24 | 2 | 3 | 9.5*16.5 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYFTC8A-26~36 | 26~36 | 3 | 2 | 9.5*16.5 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYFTC8A -38~48 | 38~48 | 4 | 1 | 9.5*16.5 | 218 | 600/1500 | 300/1000 | 10D/20D |
GYFTC8A-50~60 | 50~60 | 5 | 0 | 9.5*16.5 | 218 | 600/1500 | 300/1000 | 10D/20D |
Storage/Operating Temperature: -40℃ to + 70℃
