Description

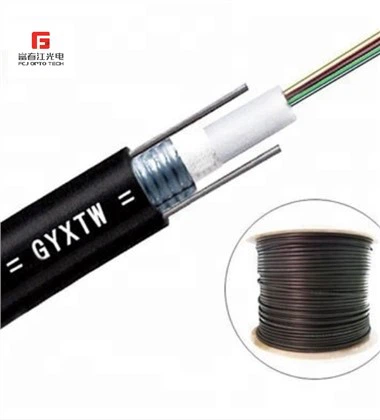

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PSP enhancing moisture-proof
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length
Standards
GYXTW cable complies with Standard YD/T 769-2003.
Optical Characteristics
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
|
|
Technical Parameters
|
Cable Type |
Fiber Count |
Cable Diameter (mm) |
Cable Weight kg/km |
Tensile Strength
Long/Short Term N |
Crush Resistance
Long/Short Term N/100mm |
Bending Radius
Static/Dynamic mm |
|
GYXTW-2~12 |
2~12 |
10.0 |
105 |
600/1500 |
300/1000 |
10D/20D |
|
GY XTW-2~12 |
2~12 |
10.6 |
124 |
1000/3000 |
1000/3000 |
10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
|
|
