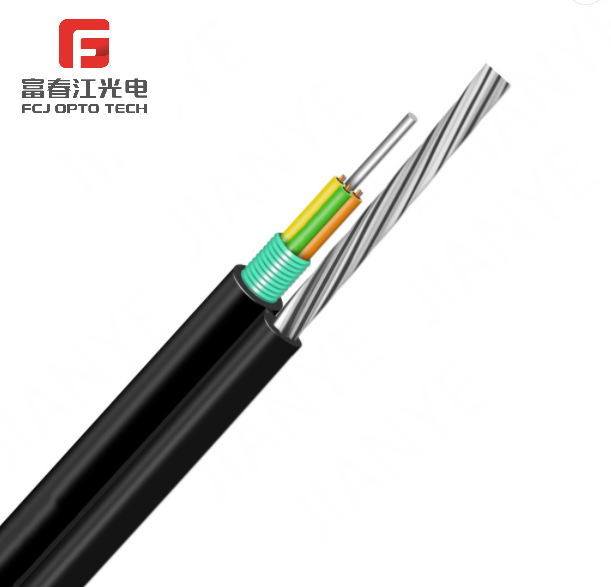

GYTC8S Optical Cable
GYTC8S is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application. The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
Send Inquiry
Product Introduction
光缆技术规范书Cable specification
1. 光缆型号(Optical cable type): GYTC8S
2.光缆截面视图 (Cross section of cable):
3. 光纤类型及特性 (Optical fiber type and properties)
| 项目 (Item) | 单位 Unit |
参数 Specification | |||||||||||||
| G. 652 | |||||||||||||||
| 模场直径 Mode field diameter | 1310nm | μm | 9.2 ± 0.4 | ||||||||||||
| 1550nm | μm | 10.4 ± 0.8 | |||||||||||||
| 包层直径 Cladding diameter | μm | 125.0± 1 | |||||||||||||
| 包层不圆度 Cladding non-circularity | % | ≤1.0 | |||||||||||||
| 芯/包层同心度偏差 Core/cladding concentricity error | μm | ≤0.5 | |||||||||||||
| 涂层直径 Coating diameter | μm | 242 ± 7 | |||||||||||||
| 涂层/包层同心度偏差Coating/cladding concentricity error | μm | ≤12 | |||||||||||||
| 光缆的截止波长 Cable cut-off wavelength | nm | ≤1260 | |||||||||||||
| 衰减系数 Attenuation Coefficient | 1310nm | dB/km | ≤0.36 | ||||||||||||
| 1550nm | dB/km | ≤0.22 | |||||||||||||
| 张力筛选试验 Proof stress level | kpsi | ≥100 | |||||||||||||
光缆结构尺寸(Dimensions of cable constructions)
| 光纤芯数 （Optical fiber number） |
4 | 8 | 12 | 24 | 36 | 48 | 72 | 96 | 144 | ||||||||||
| 光纤类型 （Optical fiber type） |
单模 SM | 单模 SM |
单 模 SM | 单 模 SM | 单 模 SM | 单 模 SM | 单 模 SM | 单 模 SM | 单 模 SM | ||||||||||
| 缆芯结构 （Core structure） |
1+5 | 1+5 | 1+5 | 1+5 | 1+5 | 1+5 | 1+6 | 1+8 | 1+12 | ||||||||||
| 套管外径 （The casing diameter）mm |
1.8 | 1.8 | 1.8 | 1.8 | 2.15 | 2.15 | 2.15 | 2.2 | 2.2 | ||||||||||
| 每管芯数 （Each tube number） |
4 | 4 | 6 | 6 | 12 | 12 | 12 | 12 | 12 | ||||||||||
| 光缆直径 （diameter of）mm |
9.0+ 6.0 |
9.0+ 6.0 |
9.0+ 6.0 |
9.0+ 6.0 |
10.0+ 6.0 |
10.5+ 6.0 |
12.0+ 6.0 |
14.0+ 6.0 |
16.0+ 6.0 |
||||||||||
| 单位重量 （Unit weight）kg/km |
170 | 170 | 170 | 175 | 180 | 195 | 220 | 260 | 330 | ||||||||||
| 外护套厚度 （Outer sheath thickness）mm |
2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | ||||||||||
| 钢丝直径 （The wire diameter）mm |
1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.6 | 2.3 | 2.0 | 2.0 | ||||||||||
| 钢绞线（7*1.0）直径 Steel strand | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | ||||||||||
| 套管壁厚 （Loose casing wall thickness）mm |
0.3 | 0.3 | 0.3 | 0.3 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | ||||||||||
环境性能 (Environmental performance)
| 项目 (Item) | 标准 (Standard) | 参数 (Parameters) | |||||||||||||
| 工作温度 Operation temperature |
IEC 60794-1-2 F1 | -20℃～+60℃ | |||||||||||||
用盘(Drum)
| 光纤数量 （Optical fiber number) |
盘高 Height (cm) |
外宽 Width (cm) |
段长Lengt h(m) | 盘类型 Drum type |
|||||||||||
| 4-24 | 90 | 65 | 2000 | 木盘 Wooden plate | |||||||||||
| 36-48 | 100 | 65 | 2000 | 木盘 Wooden plate | |||||||||||
| 72-96 | 130 | 75 | 2000 | 木盘 Wooden plate | |||||||||||
| 144 | 150 | 75 | 2000 | 木盘 Wooden plate | |||||||||||
