Single-Mode Optical Fiber G652D distributors

Single-Mode Optical Fiber G652D

This fiber is the standard for transmissions across the entire wavelength range from 1,260 nm to 1,625 nm. Thanks to its reliably low long-term attenuation at 1,383 nm (Low Water Peak), the fiber not only supports applications at the conventional 1,310 nm and 1,550 nm wavelengths, but also in the broadband range (CWDM, DWDM). This fiber is the ideal choice when cost optimization needs to be matched to maximum flexibility in fiber-optic networks.

Lowest attenuation for long lengths

Optionally available with alternative coatings for an extended temperature range – high-temperature fibers

Made in China

Products Description

G652.D Standard Singlemode Fibers and Cables

ITU-T G652.D single-mode fibers are widely used in a broad range of networking and communication applications. It is the latest version available in the G652 category and supports coarse WDM (CWDM) transmission. This specification is generally considered as the de-facto standard for single-mode fiber.

This fiber category provides a zero dispersion at 1310 nm wavelength. Thus, it is designed to deliver optimum performance in the 1310 nm band. however, it is possible to operate G652.D single-mode fiber cables at 1510 nm. The G652.D can be used in both short-haul and long-haul applications.

The only shortcoming of the G657D fibers is their inability to sustaining higher bending radii. Even the finest built G657D optical fiber cables do not allow steep bends. Consequently, more cable is required to avoid bends during deployment, resulting in higher overall costs.

Type of Single-Mode Optical Fiber G652D

Non-dispersion-shifted Single-mode Fiber with Wavelength-segment Extension (G652D)

Standard of Single-Mode Optical Fiber G652D

Single-Mode Optical Fiber G652D meets and exceeds the requirements of ITU-T G.652.D&IEC B1.3 optical fiber technical specification



Packing & Storage:

Ensure no foreign matte on the reel and fiber surface,wrap it with film and cover,and label fiber coding on the reel and cover respectively.

The packaged optical fiber is stored at a constant temperature of 25℃ in a light-proof warehouse . The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.

The standard length of the fiber optic outlet section is 25.2KM, 50.4KM, with a 1x20ft container quantity of 60480KM and a 1x40FT container quantity of 120960KM.

Advantage of Single-Mode Optical Fiber G652D

Fully standardized – compatible with use for 1,310 nm, 1,550 nm, and 1,625 nm

Lowest attenuation across the entire range (Low Water Peak), enables a wide choice of wavelength-selective transmission channels (CWDM/DWDM)

Lowest splice attenuation thanks to controlled production/testing procedures

Technical Specifications

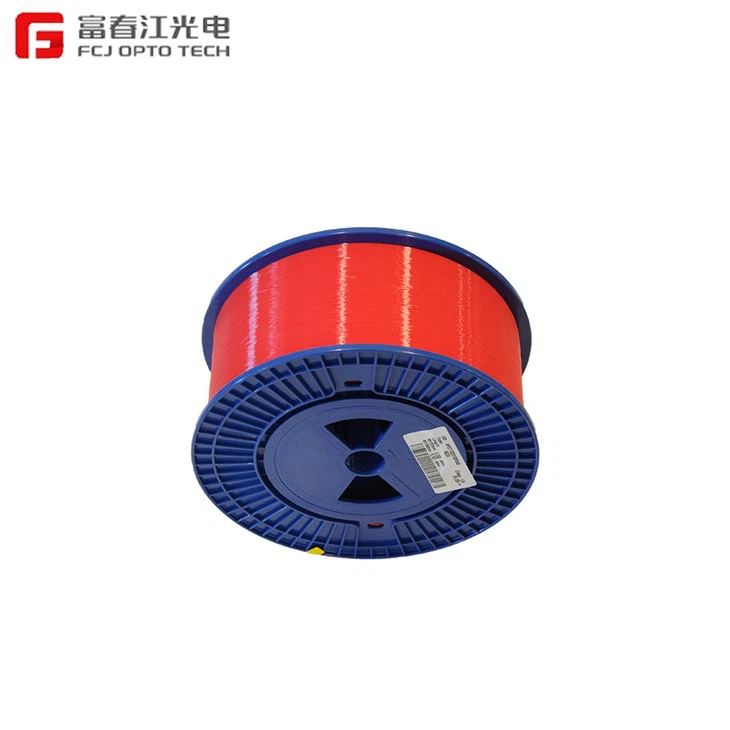

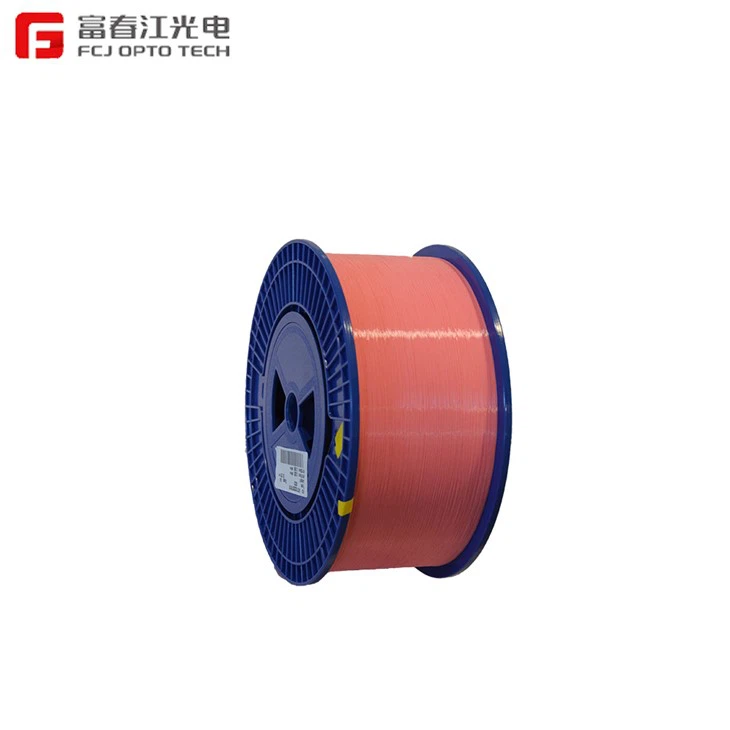

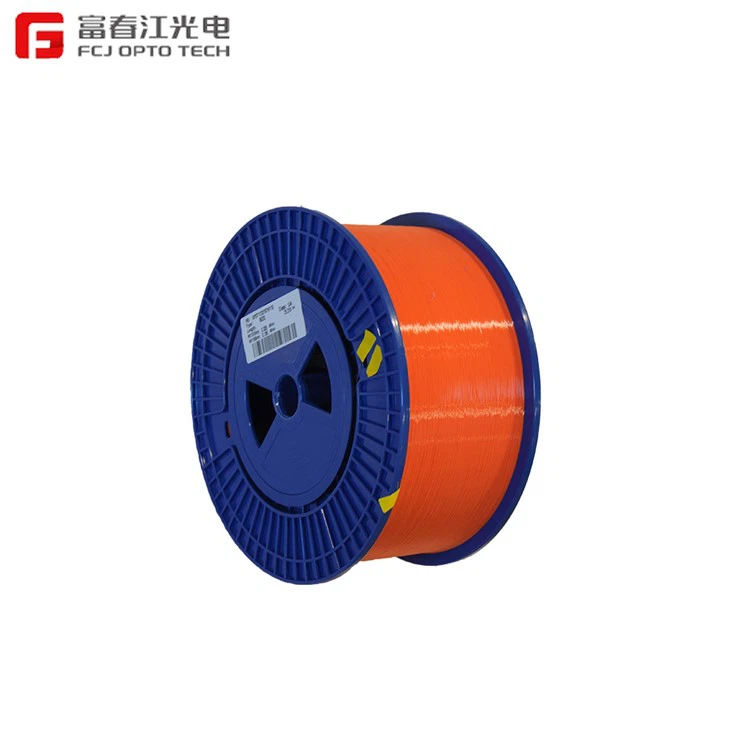

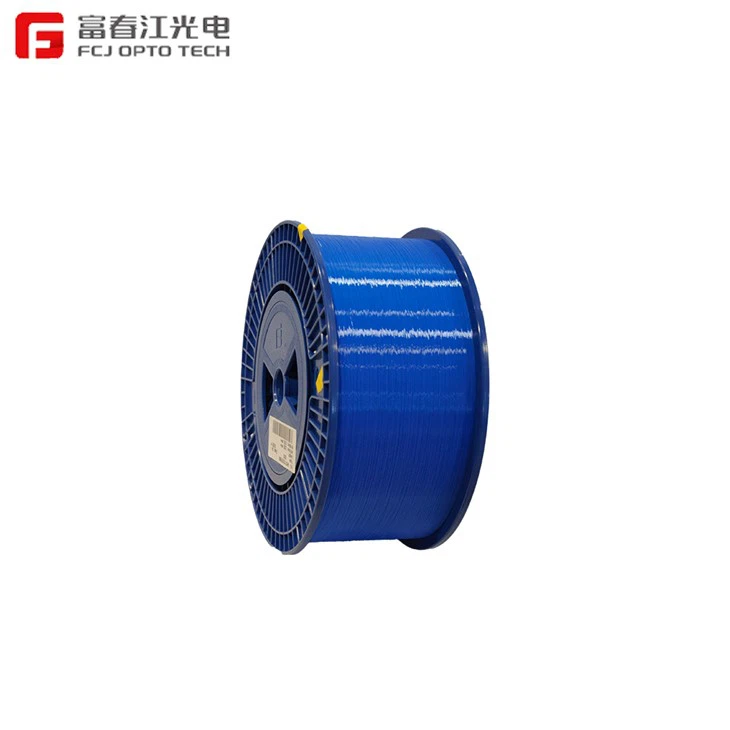

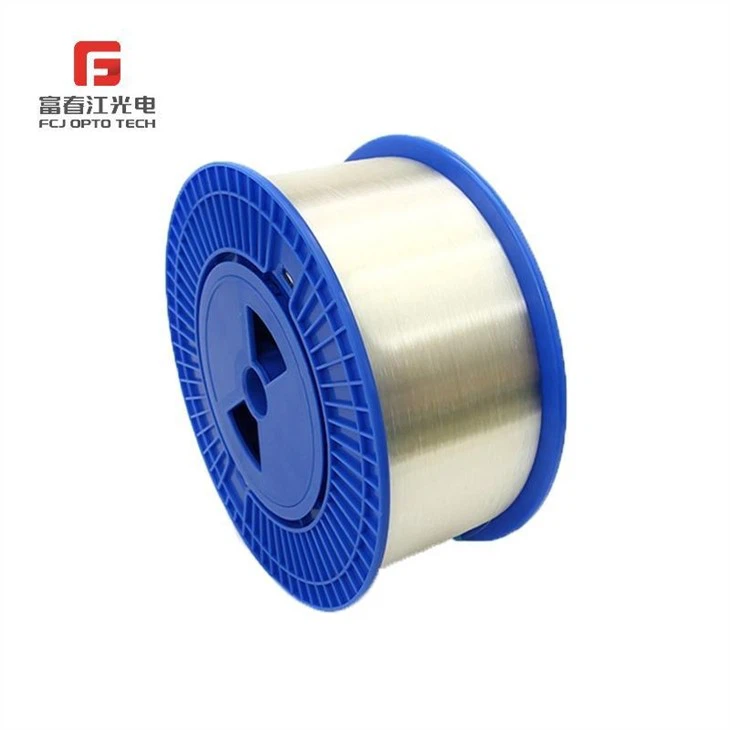

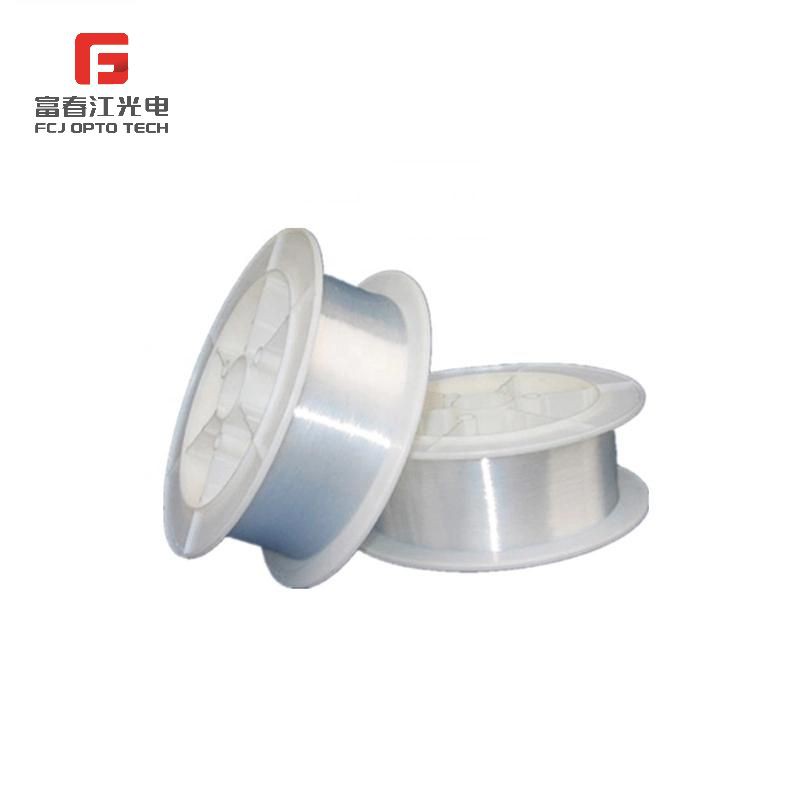

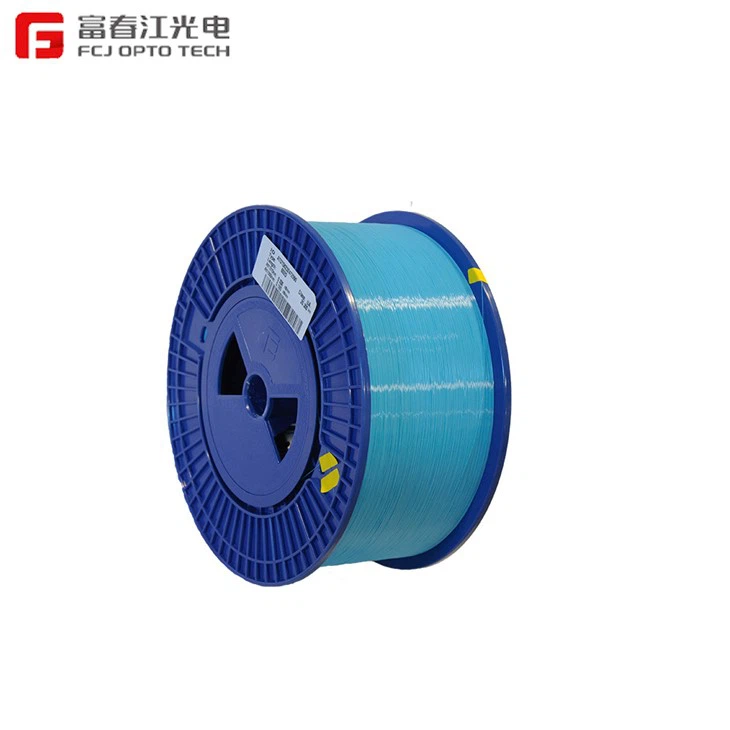

Product Picture

Our Company

          Zhejiang FCJ Optoelectronic Technology Co., Ltd is the core subsidiary of Fuchunjiang Group in the "information and communication" industry founded in 1992. The company is a state-level high-tech enterprise specializing in the research and development, production and sales of various types of optical fiber, optical cable, passive optical devices and wiring products. The first HYYV cable in Hangzhou and the first communication cable in Zhejiang were born in our company. It is called the "Huangpu Military Academy" of optical communication base by insiders. It has achieved full coverage of preform, fiber and cable industry chain with an annual output of 600 tons of fiber prefabricated preform, 30 million core kilometers of fiber drawing, 20 million core kilometers of all kinds of communication optical cables, 1 million kilometers of GJXFH , and 10 million sets of various passive devices.
