GYXY Non-Armored

The fibers are arranged in a top modulus plastic tube. Water resistant filling compound is used to fill the tubes. Water blocking material is applied over the cable to keep it watertight.

Send Inquiry

Product Introduction

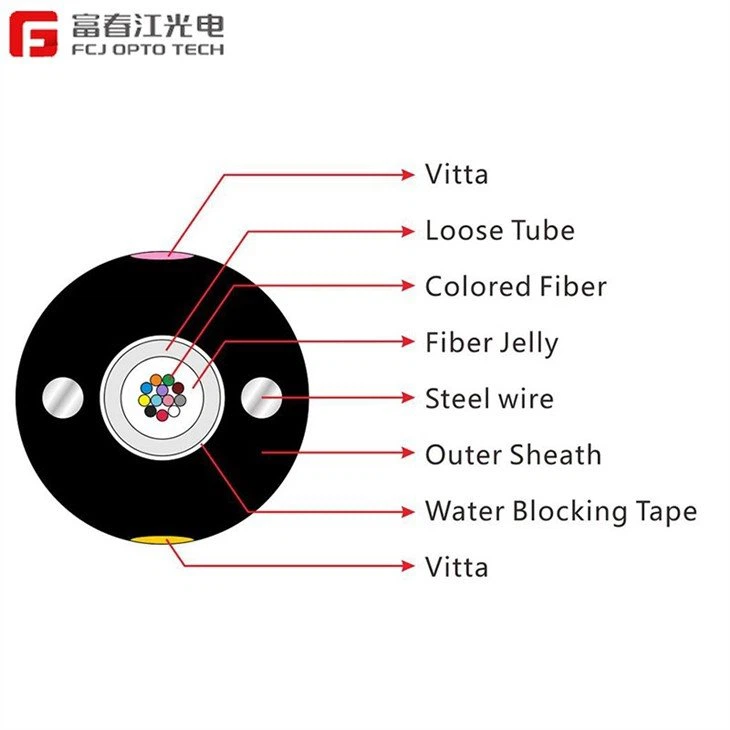

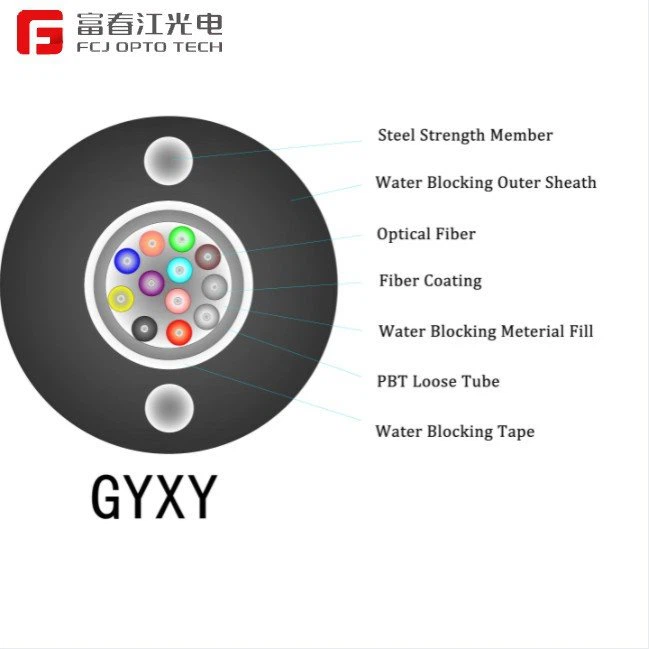

The fibers are arranged in a top modulus plastic tube. Water resistant filling compound is used to fill the tubes. Water blocking material is applied over the cable to keep it watertight. Two parallel steel cables are arranged on the side of a building. Apolyethylene( PE) sheath is attached to the finish of the wire.

Characteristics

Mechanical and temperature performance

Hydrolysis resilient hi-strength loose tube

A particular tube filling compound ensures critical protection of fiber.

Two parallel steel wires are used by tensile strength (ts).

The PREMATURE CLIMAX sheath protects cables from ultraviolet radiation.

Small diameter, light pounds and easy installation

Standards

GYXY cable complies with Standard YD/T 769-2003.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type

Fiber Count

Cable Diameter

Cable Weight

kg/km

Tensile Strength

Long/Short Term

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static/Dynamic

GYXY

2~12

9.5

600/1500

300/1000

10D/20D

GYXY

2~12

10.2

100

1000/3000

10D/20D

Storage/Operating Temperature: -40℃ to + 70℃
