GYTA Non-Armored

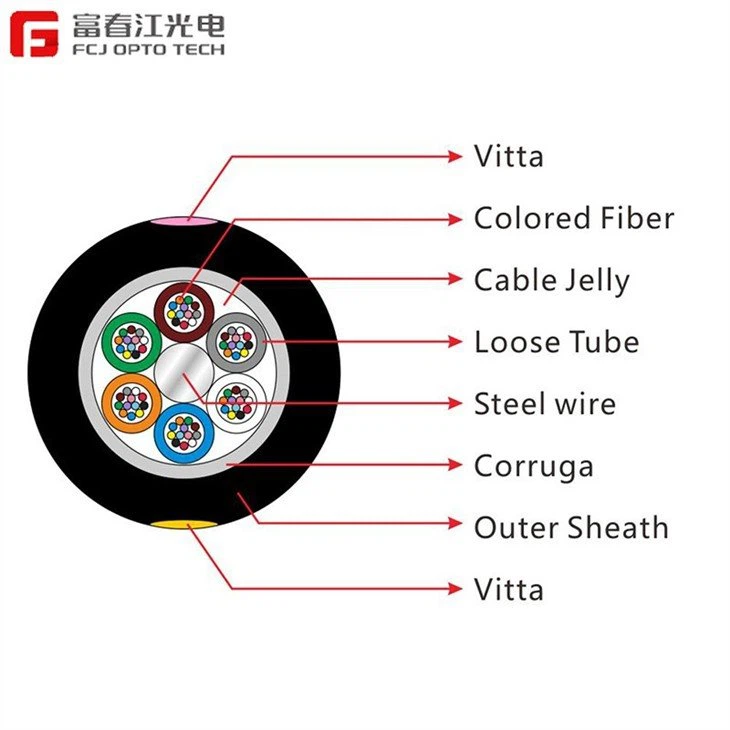

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate(APL)is applied around the cable core, is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE(LSZH) outer sheath.

Characteristics

1. Excellent mechanical and temperature performance.

2. Special tube filling compound ensure a critical protection of fibre and resist the water.

3. Loose tube stranding cable core ensures the cable structure stable.

4. Single steel wire as the central strength member to withstand axial loads.

5. 100% core filling water prevent cable jelly to ensure the cable watertight.

6. AL tape longitudinal cover cable core as moisture barrier.

7. Inner sheath effectively lower the external mechanical loading.

8. Corrugated steel tape longitudinal cover cable core and provide good crush resistance.

9. Outer sheath protects cable from ultraviolet radiation.

Standards

GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Optical Characteristics

Technical Parameters

Storage/Operating Temperature: -40℃ to + 70℃
